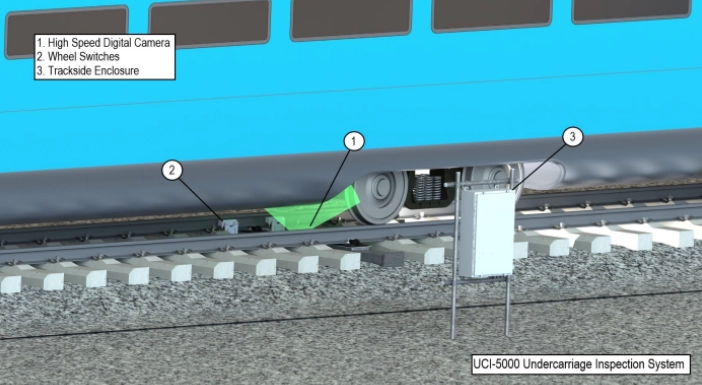

IEM’s Under Carriage Inspection System Model 5000 (UCI-5000) automates the process of undercarriage
inspection for both transit and freight vehicles. The UCI-5000 leverages IEM’s expertise in machine vision to
automatically inspect the undercarriage components of railway vehicles at main-line speeds. The system produces
high-quality, complete images of undercarriage components which are analyzed for defects using advanced
analytics.
The UCI-5000 is an easy-to-install, pre-fabricated system that takes the place of a single railway tie; this way, no
major track work is necessary. Made of heavy structural steel, the system is well-suited for today’s challenging
and extreme railway environments.
IEM’s UCI-5000 can automatically inspect components including, but not limited to, couplers, track bolsters, and
brake rigging. The UCI-5000 can be adapted to fit the needs of individual customers, making it a customizable
solution for your railyard.
